MLC613T - Kitchen Scale, Micro-force Testing Load Cell
Rated Load: 0.5kg, 1kg, 1.5kg, 2kg, 3kg, 5kg
Dimensions: 3086mm
Material: Aluminum Alloy
Dimensions: 3086mm
Material: Aluminum Alloy

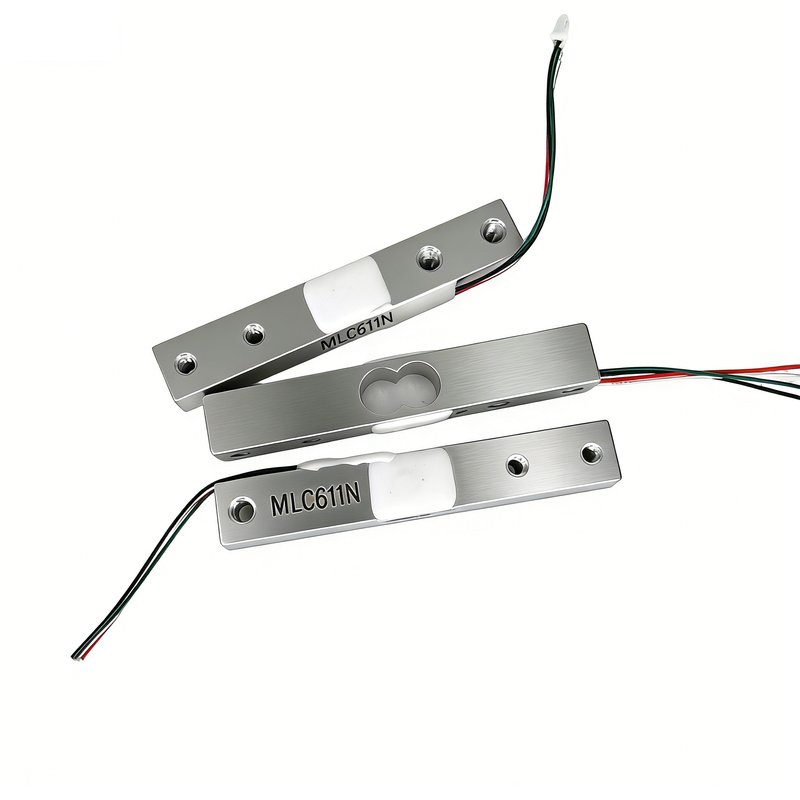

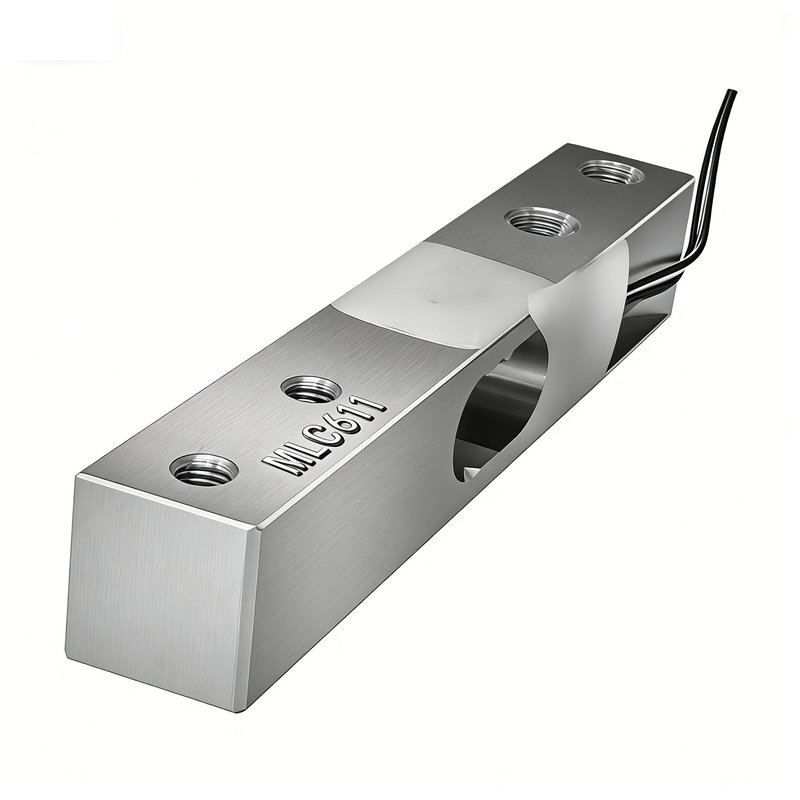

MLC611N - High precision weighing sensor for pet feeders
Product Introduction
Model: MLC611N
Product catalog: Miniature weighing sensor
Load range: 1~30kg
Comprehensive error: 0.05% fs
Working temperature: Low temperature: -40~45 ℃, normal temperature -20~+60 ℃, medium temperature -10~+105 ℃
Resistance strain gauges: full bridge, half bridge

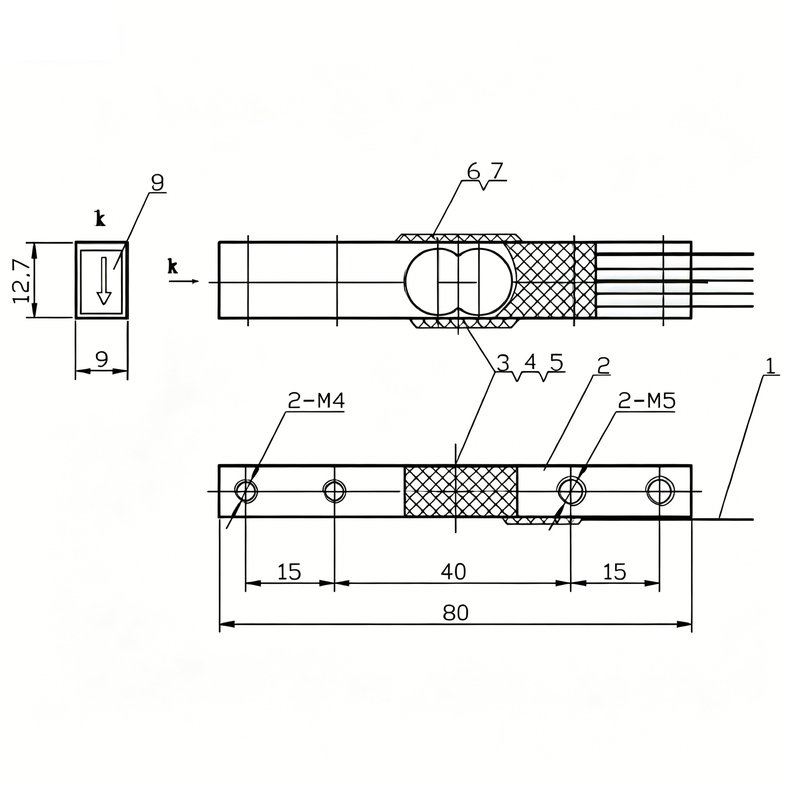

Size: 80 * 12.7 * 12.7mm
Material: Aluminum alloy
Safe overload: 120%; Extreme overload: 150%
Suitable for: kitchen scale weighing sensor, pet scale weighing sensor, pet feeder weighing sensor, smart rice cooker weighing sensor, coffee machine weighing sensor, vending machine weighing sensor, smart parts cabinet weighing sensor
Download related documents
Contact immediately
Technical Specifications
MLC611N Single Point Load Cell by ManYear Technology is a high-quality Single Point Load Cell 10kg. Range 500g, 1, 2, 3, 5, 10, 15, 20kg, accuracy 0.05%FS, operating temperature : -40~45℃, -20~+60 ℃, -10~+105 ℃. Dimension 80*9*12.7mm. Material: Aluminum Alloy. Applications: Kitchen Scale Load Cell, Pet Scale Load Cell, Pet Feeder Load Cell, Vending Machine Load Cell. Keywords: Single Point Load Cell, 10kg. ManYear MLC611N delivers high accuracy, stable performance, and long-term reliability, making it an ideal choice for Single Point Load Cell measurement in industrial applications. Trusted quality assurance and dedicated technical support are provided for customers worldwide.
